Rob Roy prhelb3x90

Overview

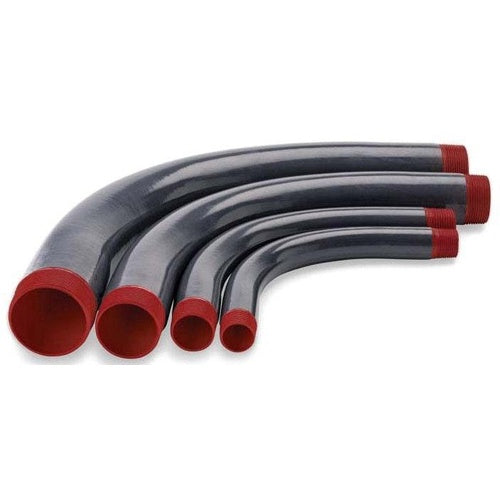

PRHELB3X90 - 3" 90D Standard Elbow

Product Specifications

• Catalog Number: PRHELB3X90
• UPC / GTIN: 784011200443
• Manufacturer: Plastibond
• UNSPSC: N/A
• Full Technical Description: ELBOW, STANDARD RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE COATED INTERIOR, 40 MIL GRAY PVC COATED EXTERIOR FINISH; UL 6, UL (CANADA AND US), CSA C22.2, ETL APPROVAL; 50 STANDARD PACKAGE; 3 INCH TRADE SIZE; EXTERNAL THREADED END TYPE
• Material: Steel
• Finish: 2 Mil Red Urethane Coated Interior, 40 Mil Gray PVC Coated Exterior
• Additional Information: Diameter 3.08 Inch (Internal) x 3.58 Inch (External); Threaded Protector Cap Color Blue
• Description: 3" 90D STANDARD ELBOW
• Extra Long Description: STANDARD RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE (INTERIOR AND THREAD)/40 MIL GRAY PVC (EXTERIOR) FINISH; UL (CANADA AND US), UL 6, CSA C22.2 APPROVAL; ISO 9001 APPLICABLE STANDARD; 50 PER PACK STANDARD PACKAGE; 3 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE; 13 INCH BEND RADIUS; NIPPLE LENGTH 32 INCH; THREAD PROTECTOR COLOR BLUE; PRHELB MODEL
• Long Description: ELBOW, STANDARD RADIUS TYPE; STEEL MATERIAL; 2 MIL RED URETHANE COATED INTERIOR, 40 MIL GRAY PVC COATED EXTERIOR FINISH; UL 6, UL (CANADA AND US), CSA C22.2, ETL APPROVAL; 50 STANDARD PACKAGE; 3 INCH TRADE SIZE; EXTERNAL THREADED END TYPE
• Product Type: Elbow
• Bend Angle: 90 Degree
• Bend Radius: 13 INCH
• End Type: EXTERNAL THREADED
• Manufacturers Part Number: PRHELB-3X90
• Model: Series PRHELB
• GTIN: 00784011200443
• UPC: 784011200443
• Type: STANDARD RADIUS
• Trade Size: 3 INCH
• Standard Package: 50 FT
• Weight per each: 23.58
• Carton: 1
• Package: 50
• Approval: UL 6, UL (Canada and US), CSA C22.2, ETL
