Overview

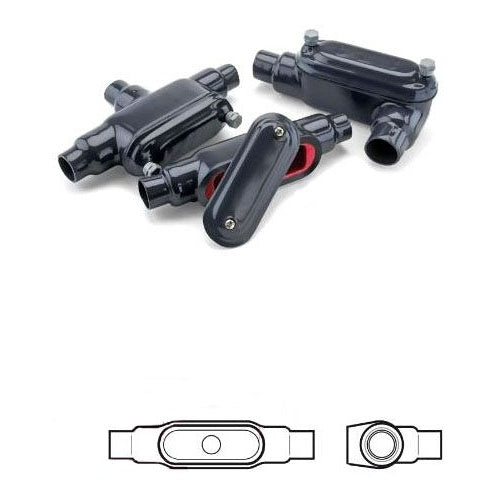

PRHTB38 - 1" Form 8 TB Fitting

Product Specifications

• Full Technical Description: 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FERROUS METAL MATERIAL; 1.83 INCH WIDTH SIZE; 1 INCH HUB SIZE; SCREW INSTALLATION; TB CONFIGURATION; 3 HUB(S); UL (CANADA AND US), UL 514A/514B/514D, CSA C22.2 APPROVAL; PLASTIC ENCAPSULATED STAINLESS STEEL SCREW COVER TYPE; TEE HUB LOCATION; FORM 8 FORM TYPE; BACK ACCESS OPENING; COVER SEAL V-SEAL GASKET; ENCLOSURE RATING NEMA 4X, IP69; APPLICABLE STANDARD IEC, ISO 9001
• Catalog Number: PRHTB38
• Manufacturer: Plastibond
• Type: Conduit Body
• UNSPSC: 39131708 - Electrical conduit fitting body
• Access Opening: BACK
• Cover Type: PVC Coated
• Hub Location: TEE BACK
• Material: 2 Mil Red Urethane Coated Interior/40 Mil Gray PVC Coated Exterior Ferrous Metal (Body), Stainless Steel (Screw)
• Number Of Hubs: 3 IN
• Hub Size: 1 INCH
• Size: 1.83 Inch Width
• Additional Information: Enclosure Type IP69; Cover Seal Type V-Seal Gasket; Applicable Standard ISO 9001, IEC
• Product Type: Conduit Body
• Form Type: FORM 8
• UPC: 784011204298
• GTIN: 00784011204298
• Carton: 1
• Package: 4
• Approval: UL (Canada and US), UL 514A/D, UL 4X, CSA C22.2, ETL
• Configuration: TB
• Installation: SCREW
• Used On: RIGID CONDUIT
