Rob Roy prlb17

Overview

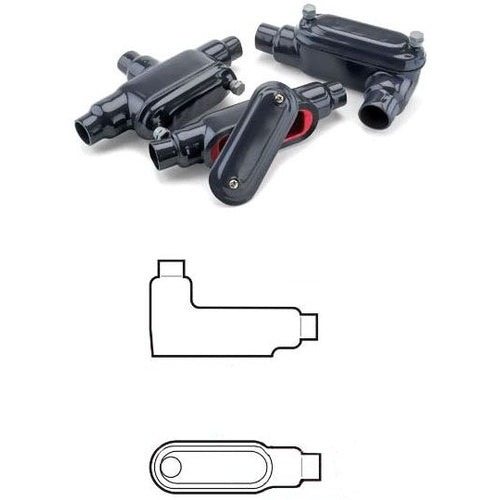

RedH2OT® PRLB17 Type LB Conduit Body With Cover, 1/2 in Hub, Form 7 Form, Steel, PVC Coated

Product Specifications

• Catalog Number: PRLB17
• UPC / GTIN: 784011203635
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 40 mil gray PVC exterior coating; Plasti-Bond conduit bodies with covers are offered in form 8 and form 7 styles, each with numerous configurations to provide a complete coated conduit system; Sealing sleeves on all conduit openings; 10 CRFB sizes from 1/2 through 4 in; Form 7 style cover uses retained stainless screw and wedge clip design; Form 8 style cover uses plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in; 2 mil red urethane interior coating
• Color: Gray/Red
• Connection Type: Thread
• Country of Origin: United States of America (the)
• Dimensions: 5.1 in L x 2.29 in W x 1.42 in H
• Finish: PVC Coated
• Form: Form 7
• Hub Size: 1/2 in
• Material: Steel
• Number of Hubs: 2
• Series: PRLB
• Type: Type LB
