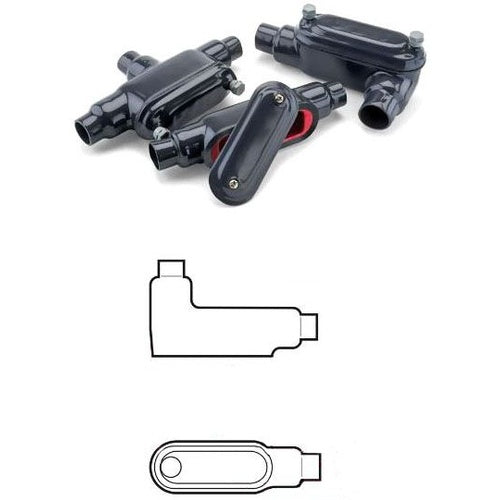

PRLB47 - 1-1/4" Form 7 LB Fitting

Product Specifications

• Full Technical Description: 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FERROUS METAL MATERIAL; 2.27 INCH WIDTH SIZE; 1-1/4 INCH HUB SIZE; SCREW INSTALLATION; LB CONFIGURATION; 2 HUB(S); UL (CANADA AND US), UL 514A/514B/514D, CSA C22.2 APPROVAL; SELF-RETAINING STAINLESS STEEL SCREW COVER TYPE; 90 DEGREE HUB LOCATION; FORM 7 FORM TYPE; BACK ACCESS OPENING; APPLICABLE STANDARD ISO 9001
• Catalog Number: PRLB47
• Manufacturer: Plastibond
• Type: Conduit Body
• UNSPSC: 39131708 - Electrical conduit fitting body
• Access Opening: BACK
• Cover Type: PVC Coated
• Hub Location: 90 Degree
• Material: 2 Mil Red Urethane Coated Interior/40 Mil Gray PVC Coated Exterior Ferrous Metal (Body), Stainless Steel (Screw)
• Number Of Hubs: 2
• Hub Size: 1-1/4 INCH
• Size: 2.27 Inch Height
• Additional Information: Applicable Standard ISO 9001
• Product Type: Conduit Body
• Form Type: FORM 7
• UPC: 784011203666
• GTIN: 00784011203666
• Carton: 1
• Package: 4
• Approval: UL (Canada and US), UL 514A/D, CSA C22.2, ETL
• Configuration: LB
• Installation: SCREW
• Used On: RIGID CONDUIT
