Overview

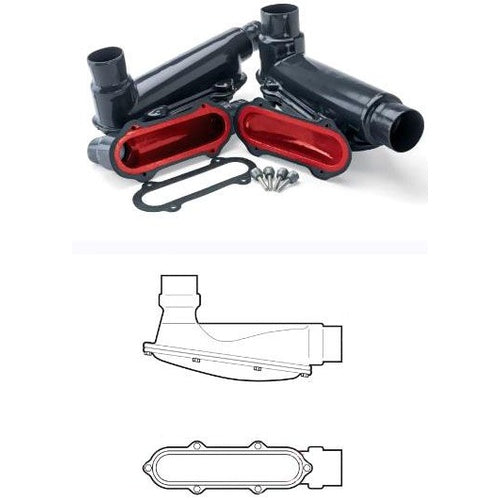

RedH2OT® PRLBD6600 LBD Pulling Elbow, 2 in Trade, 90 deg, Steel, PVC Coated

Product Specifications

• Catalog Number: PRLBD6600
• UPC: 784011205080
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: Conduit bodies are used at 90 deg bends in conduit runs to allow straight pulls at bends, to serve as pull outlets for stiff conductors, to allow for service entrance into buildings or to allow conductor entrance into motors; Electrical continuity of the conduit system is maintained across assembled joints; 40 mil gray PVC exterior, 2 mil red urethane interior coating; Sealing sleeves on all conduit openings; Molded-in seal between bodies and covers; Domed covers allow gentle bends of conductors; Angled covers allow straight pulling in either direction
• Angle: 90 deg
• Color: Gray/Red
• Country of Origin: United States of America (the)
• Dimensions: 5.48 in H x 4.71 in W
• Finish: PVC Coated
• Material: Steel
• Series: LBD
• Suitable For Use With: IMC/Rigid Conduit
• Trade Size: 2 in
