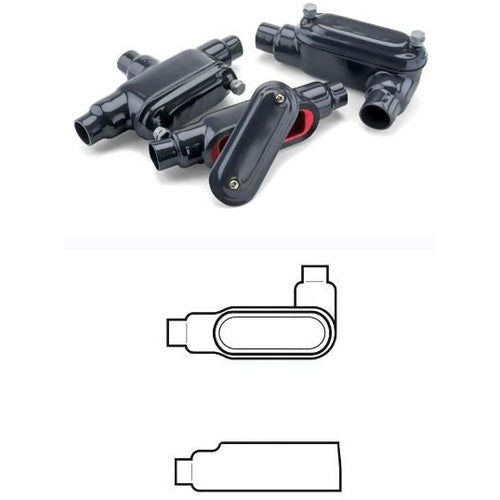

Robroy RedH2OT® PRLR67 Type LR Conduit Body With Cover, 2 in Hub, 7 Form, Steel, PVC Coated

Product Specifications

• Catalog Number: KORPRLR67
• Part Number: PRLR67
• UPC: 784011204045
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: 40 mil gray PVC exterior coating; 2 mil red urethane interior coating; Electrical continuity of the conduit system is maintained across assembled joints; Cover uses retained stainless screw and wedge clip design; 10 CRFB sizes from 1/2 through 4 in
• Hub Size: 2 in
• Material: Steel
• Number of Hubs: 2
• Minimum Order Qty: 1
• Order Interval: 1
• Color: Gray/Red
• Connection Type: Threaded
• Finish: PVC Coated
• Form: 7
• Type: Type LR
• Application: For 90 deg bends, taps or splices or mounting outlets, electrical and data wire raceways in harsh environments
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 514B, 514D, cULus Listed, CSA C22.2 File No. 18, 42
• Dimensions: 10.17 in L x 3.17 in W x 4.17 in H
• Catalog ID: KORPRLR67
