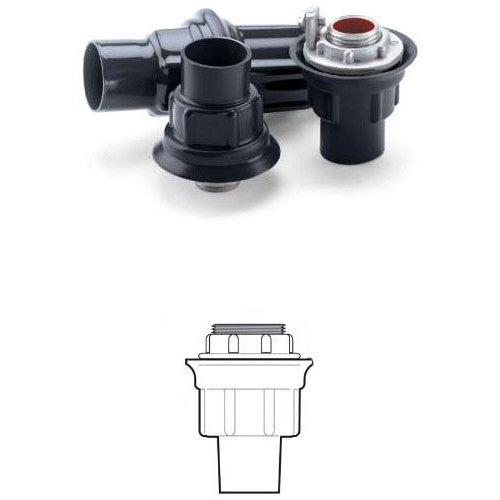

RedH2OT® PRST2 Type ST Knockout Hub, 3/4 in, For Use With Sheet Metal Electrical Enclosure, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond ST style knockout hubs are used to terminate conduit runs through the wall of a sheet metal electrical enclosure. They are available with or without grounding lug. STTB style hubs are "Through-Bulkhead" fittings used to pass conduit runs through firewalls or bulkheads up to 1/8" thick. STTTB style hubs perform the same function for unlimited wall thicknesses, (furnished without nipples).
• Catalog Number: PRST2
• UPC: 784011207374
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 40 mil gray PVC exterior, 2 mil red urethane interior coating; Sealing sleeves on conduit side of hub; Molded PVC gasket seals flush with enclosure wall; O-ring gasket provides additional seal; NEMA 2/3-gang/3-gang/4/4X/11/12 enclosure; 1/8 in THK wall; Insulated throat
• Color: Gray/Red
• Country of Origin: United States of America (the)
• Dimensions: 2.25 in OD x 2.22 in L
• Finish: PVC Coated
• Material: Steel
• Mounting Type: Threaded
• Size: 3/4 in
• Suitable For Use With: Sheet Metal Electrical Enclosure
• Type: Type ST
