Overview

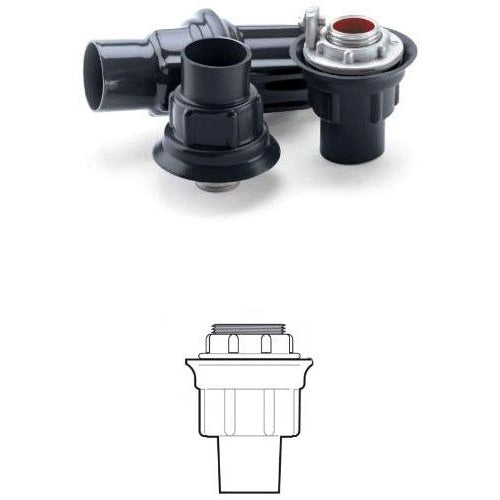

Plasti-Bond REDH2OT® PRSTA4 ST Style Threaded Knockout Hub, 1-1/4 in, For Use With Rigid Metal Conduit, Aluminum, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond ST style knockout hubs are used to terminate conduit runs through the wall of a sheet metal electrical enclosure. They are available with or without grounding lug. STTB style hubs are "Through-Bulkhead" fittings used to pass conduit runs through firewalls or bulkheads up to 1/8" thick. STTTB style hubs perform the same function for unlimited wall thicknesses, (furnished without nipples).
• Catalog Number: PRSTA4
• UPC: 784011218950
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 40 mil gray PVC exterior coating; 2 mil red urethane interior coating; Sealing sleeves on conduit side of hub; Molded PVC gasket seals flush with enclosure wall; O-Ring gasket provides additional seal
• Color: Gray/Red
• Country of Origin: United States of America (the)
• Dimensions: 1.69 in H x 3.25 in W
• Finish: PVC Coated
• Material: Aluminum
• Size: 1-1/4 in
• Suitable For Use With: Rigid Metal Conduit
• Type: ST Style Threaded
