Overview

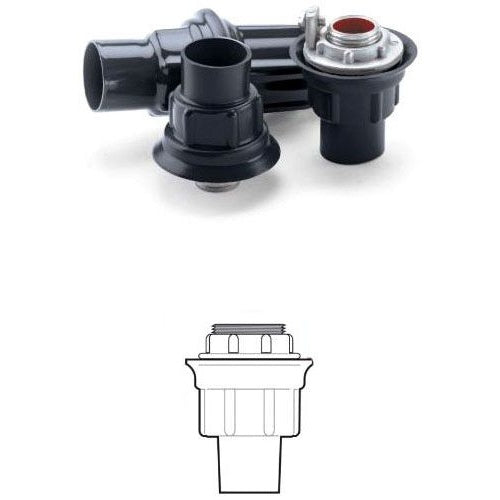

Robroy PRSTA7 2-1/2-Inch PVC-Coated Aluminum ST Knockout Hub

Product Specifications

• Catalog Number: PRSTA7
• UPC: 784011218981
• Full Technical Description: product type: ST-style knockout hub; trade size: 2-1/2 inches; body material: aluminum; exterior finish: nominal 0.040-inch, 40-mil gray PVC coating; interior finish: nominal 0.002-inch, 2-mil red urethane coating; seal type: O-ring gasket; molded PVC gasket seals flush against the enclosure wall; sealing sleeve provided on the conduit side of the hub; Dimension A: 2.22 inches; Dimension B: 4.75 inches; Dimension C: 1.28 inches; maximum enclosure wall thickness: 0.25 inch; hazardous-location suitability: Class I, Division 2; Class II, Divisions 1 and 2; Class III, Divisions 1 and 2; application: terminates a threaded conduit run through the wall of a sheet-metal electrical enclosure; compatible with PVC-coated threaded conduit; grounding lug not included
• Made In Usa: Yes
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
• Unspsc: 39121613
