Product information
Overview

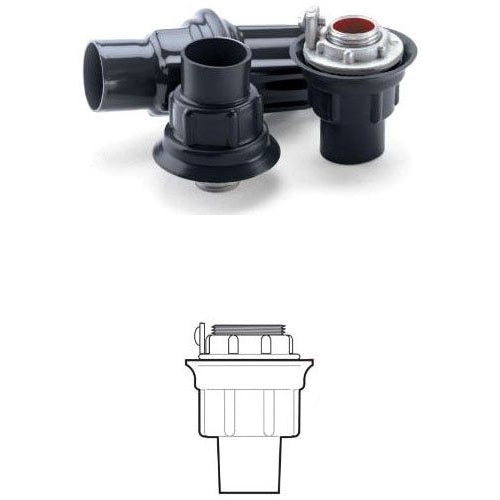

Robroy RedH2OT® PRSTG5 Type STG Knockout Hub With Ground Lug, 1-1/2 in, For Use With Sheet Metal Electrical Enclosure, Steel, PVC Coated
Product Specifications
- Catalog Number: KORPRSTG5
- Part Number: PRSTG5
- UPC: 784011207527
- Manufacturer: Robroy Industries
- Manufacturer Brand: Robroy
- Features: 40 mil gray PVC exterior, 2 mil red urethane interior coating; Sealing sleeves on conduit side of hub; Molded PVC gasket seals flush with enclosure wall; O-ring gasket provides additional seal; NEMA 2/3-gang/3-gang/4/4X/11/12 enclosure; 0.125 in THK wall; Insulated throat
- Material: Steel
- Size: 1-1/2 in
- Suitable For Use With: Sheet Metal Electrical Enclosure
- Type: Type STG
- Application: Electrical and Data Wire Raceways in Harsh Environments Applications
- Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, File No. E200413, CSA Certified, NEC/CEC Class I, Div 2, Class II, Div 1, 2, Class III, Div 1, 2
- Color: Gray/Red
- Finish: PVC Coated
- Dimensions: 3.5 in OD x 3.19 in L
