Overview

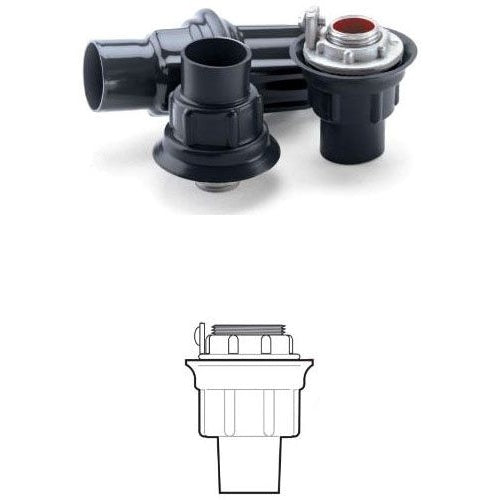

Robroy PRSTG9 3-1/2-Inch PVC-Coated Ferrous Metal STG Knockout Hub With Ground

Product Specifications

• Catalog Number: PRSTG9
• UPC: 784011207565
• Full Technical Description: product type: STG grounding knockout hub; trade size: 3-1/2 inches; body material: ferrous metal; exterior finish: nominal 0.040-inch, 40-mil gray PVC coating; interior finish: nominal 0.002-inch, 2-mil red urethane coating; grounding feature: attached grounding lug; seal type: O-ring gasket; molded PVC gasket seals flush against the enclosure wall; sealing sleeve provided on the conduit side of the hub; Dimension A: 2.38 inches; Dimension B: 5.50 inches; Dimension C: 1.44 inches; maximum enclosure wall thickness: 0.25 inch; nominal weight: 3 lb; approval: UL 514B, file E200413; hazardous-location suitability: Class I, Division 2; Class II, Divisions 1 and 2; Class III, Divisions 1 and 2; application: terminates and grounds a threaded conduit run through the wall of a sheet-metal electrical enclosure; compatible with PVC-coated threaded conduit systems
• Made In Usa: Yes
• Manufacturer: Robroy Industries
• Manufacturer Brand: Plasti-Bond
• Unspsc: 39131700
