Overview

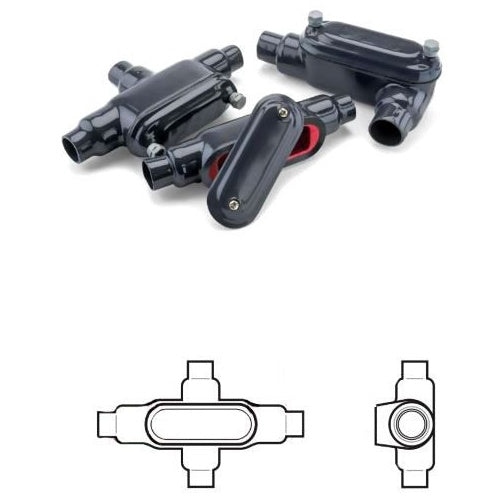

PRX27 Type X Conduit Body With Cover, 3/4 in Hub, Form 7 Form, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. May be used to make 90degree bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures etc. Electrical continuity of the conduit system is maintained across assembled joints.
• Catalog Number: PRX27
• UPC: 784011204465
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: 40 mil gray PVC exterior coating, 2 mil red urethane interior coating; Sealing sleeves on all conduit openings; Form 7 style cover uses retained stainless screw and wedge clip design; Cover uses retained stainless screw and wedge clip design
• Color: Gray/Red
• Connection Type: Thread
• Country of Origin: United States of America (the)
• Dimensions: 7-3/4 in L
• Finish: PVC Coated
• Form: Form 7
• Hub Size: 3/4 in
• Material: Steel
• Number of Hubs: 4
• Type: Type X
