Overview

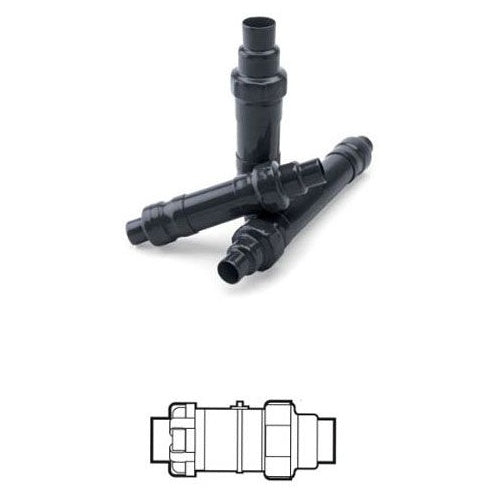

PRXJG54 Plasti-Bond, a RobRoy Company Couplers, XJG Series, 1-1/2 Expansion Joint 4

Product Specifications

• Full Technical Description: Couplers, XJG Series 1-1/2 Expansion Joint 4 XJG Series Information Available with Either 4" or 8" Maximum Movement Sealing Sleeves on All Conduit Openings 10 Trade Sizes from 1/2" through 4" 2 mil Red Urethane Interior Coating 40 mil Gray PVC Exterior Coating Internally Grounded Plasti-Bond REDH2OT XJG type expansion joints are used to connect two lengths of conduit subject to longitudinal movement, including that caused in long runs by thermal expansion and contraction.
• Catalog Number: PRXJG54
• Manufacturer: Plasti-Bond, a RobRoy Company
• Product Series: XJG
• Family Series: Plasti-Bond, a RobRoy Company Couplers, XJG Series
• Conduit Type: RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 1-1/2 "
• Max Conduit Movement: 4 "
• NEMA Rating: NEMA FB1
• Ground Pass Through: Yes
• Composition: Malleable Iron
• Insulated Throat: Yes
• Comments: Exterior PVC Coating, Interior Urethane Coating
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
