Overview

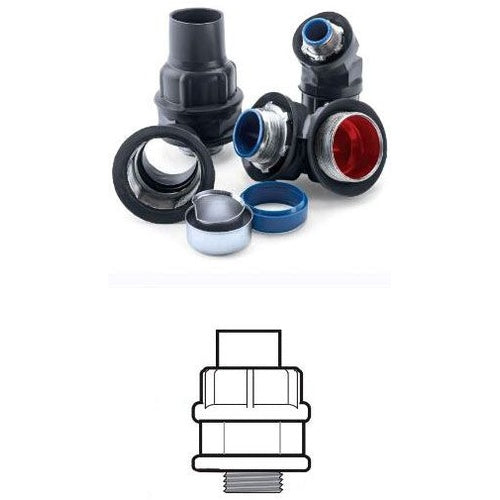

RedH2OT® PR5333 Liquid Tight Connector, 3/4 in Trade, 1.74 in OD Cable Openings, Straight, Ferrous Metal, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond liquid tight connectors are used with liquid tight conduit to wire motors, transformers, processing equipment, pumps, etc. The flexible conduit and the PVC coated connector work together to seal out water and other corrosive liquids, protecting the conductors from damage."
• Catalog Number: PR5333
• UPC: 784011208432
• Manufacturer Brand: Robroy
• UNSPSC: 39131707
• Features: The flexible conduit and the PVC coated connector work together to seal out water and other corrosive liquids, protecting the conductors from damage; 40 mil gray PVC exterior coating, 2 mil red urethane interior coating; Sealing sleeves on all conduit openings; 0.56 in L thread
• Angle: Straight
• Cable Openings: 1.74 in OD
• Color: Gray/Red
• Country of Origin: United States of America (the)
• Dimensions: 1.63 in L x 1.74 in W
• Finish: PVC Coated
• Material: Ferrous Metal
• Mounting Type: Threaded
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit System
• Trade Size: 3/4 in
