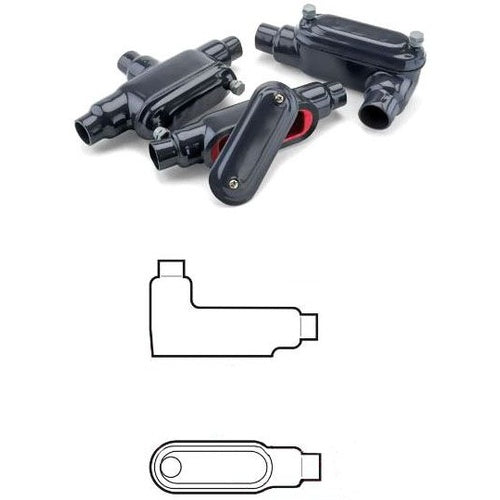

Robroy RedH2OT® PRHLB38 Type LB Conduit Body With Cover, 1 in Hub, Form 8 Form, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond RedH2OT® conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. May be used to make 90 deg bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures etc. Form 8 style fittings 1/2 to 2 in have an integral V-Seal gasket for superior corrosion protection. Electrical continuity of the conduit system is maintained across assembled joints.
• Catalog Number: KORPRHLB38
• Part Number: PRHLB38
• UPC: 784011203550
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: 40 mil gray PVC exterior coating, 2 mil red urethane interior coating; Plasti-bond conduit bodies with covers are offered in form 8 and form 7 styles, each with numerous configurations to provide a complete coated conduit system; Sealing sleeves on all conduit openings; 10 CRFB sizes from 1/2 through 4 in; Form 7 style cover uses retained stainless screw and wedge clip design; Form 8 style cover uses plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in
• Hub Size: 1 in
• Material: Steel
• Number of Hubs: 2
• Series: PRHLB
• Type: Type LB
• Application: For 90 deg bends, taps or splices or mounting outlets, electrical and data wire raceways in harsh environments
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA C22.2 No. 18
• Dimensions: 7.51 in L x 2.85 in W x 1.79 in H
• Color: Gray/Red
• Connection Type: Threaded
• Finish: PVC Coated
• Form: Form 8
