Overview

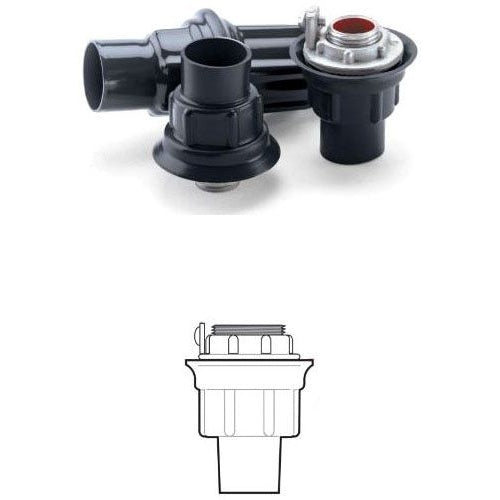

Robroy RedH2OT® PRSTG2 Type STG Knockout Hub With Ground Lug, 3/4 in, For Use With Sheet Metal Electrical Enclosure, Steel, PVC Coated

Product Specifications

• Full Technical Description: Plasti-Bond RedH2OT® ST style knockout hubs are used to terminate conduit runs through the wall of a sheet metal electrical enclosure. They are available with or without grounding lug. STTB style hubs are "Through-Bulkhead" fittings used to pass conduit runs through firewalls or bulkheads up to 1/8 in THK. STTTB style hubs perform the same function for unlimited wall thicknesses, (furnished without nipples).
• Catalog Number: KORPRSTG2
• Part Number: PRSTG2
• UPC: 784011207497
• Manufacturer: Robroy Industries
• Manufacturer Brand: Robroy
• Features: 40 mil gray PVC exterior, 2 mil red urethane interior coating; Sealing sleeves on conduit side of hub; Molded PVC gasket seals flush with enclosure wall; O-ring gasket provides additional seal; NEMA 2/3-gang/3-gang/4/4X/11/12 enclosure; 0.125 in THK wall; Insulated throat
• Material: Steel
• Minimum Order Qty: 1
• Order Interval: 1
• Catalog ID: KORPRSTG2
• Color: Gray/Red
• Dimensions: 2.25 in OD x 2.22 in L
• Finish: PVC Coated
• Size: 3/4 in
• Suitable For Use With: Sheet Metal Electrical Enclosure
• Type: Type STG
• Application: Electrical and Data Wire Raceways in Harsh Environments Applications
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, File No. E200413, CSA Certified, NEC/CEC Class I, Div 2, Class II, Div 1, 2, Class III, Div 1, 2
