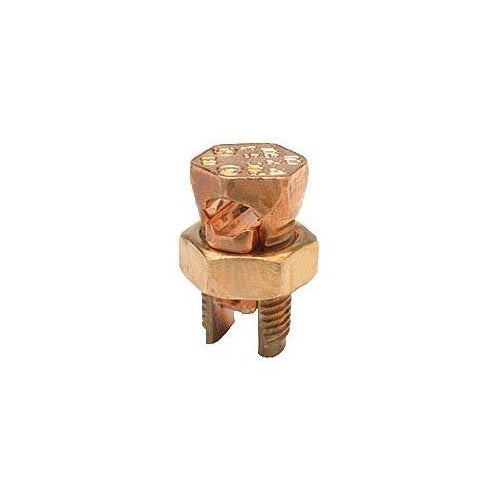

Penn-Union S-1/0 1/0-AWG Split Bolt Connector
Product Specifications
- Category: Large Terminals & Connectors
- Full Technical Description: High Strength Copper Alloy Material; 4 AWG Solid min. Run Conductor Size; 1/0 AWG Stranded (Copper), (3) 6 AWG Stranded (Copperweld), 2 AWG Type A (Copperweld) Max. Run Conductor Size; 14 AWG Solid min. Tap Conductor Size; 1/0 AWG Stranded (Copper), (3) 6 AWG Stranded (Copperweld), 2 AWG Type A (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA, RUS Approval; RoHS Compliant; Size 1.64 Inch L X 0.88 Inch W; Torque Rating 385 lb-Inch
- Manufacturer: Penn-Union Corp.
- Manufacturer Brand: Penn-Union Corp.
- Sub Category: Mechanical Single Cable Tap
- Unspsc: 39121408
- UPC 12 Digit: 785037593038
- SKU Name: s10 pennunion
