Overview

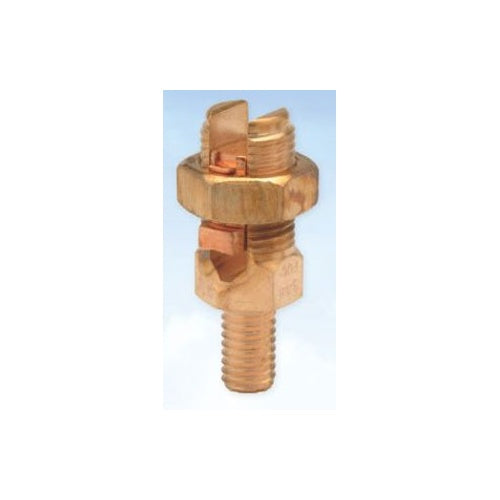

Penn-Union SCS-0 9-AWG 1-Conductor Male Connector

Product Specifications

• Category: Small Terminals & Connectors
• Full Technical Description: High Copper Content Bronze Material; Cable to Stud/Tapped Hole Used on; 1/2 Inch Stud Length; UL 467, CUL Approval; 2 Conductor(S); 12 AWG Solid to 8 AWG Stranded Conductor Size; 1/4 Inch-20 TPI Stud Diameter; 3/8 Inch Body Hex Size; 1/2 Inch Nut Hex Size; Includes Nut; SCS Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Bar To Flat Surface Post
• Unspsc: 39121613
• UPC 12 Digit: 785037596121
• SKU Name: scs0 pennunion

Resources

• Manufacturer Spec Sheet
