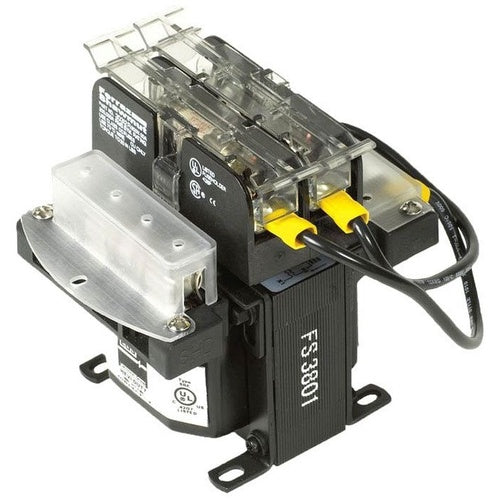

Sola-HD E075 75Va Industrial Control Transformer

Overview

Sola-HD E075 75Va Industrial Control Transformer

Product Specifications

• Brand Name: SolaHD
• Special Features: 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEGC/131 DEGF rise, 105 DEGC insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included).
• Standard: cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
• Type: SBE Encapsulated Series Transformers
• Wattage: 50 W
• Width: 3.01 in
• Frequency Rating: 50/60 Hz
• Height: 2.72 in
• Kva Rating: 0.075
• Length: 3.99 in
• Mounting: Heavy Gauge Steel Mounting Plate
• Number Of Phases: 1
• Primary Voltage: 240 x 480 Volt Primary
• Secondary Voltage: 120 Volt Secondary
• Catalog Description: ENCAPSULATED INDUSTRIAL CONTROL TRANSFORMER 75VA, VOLTS PRIMARY: 220X440, 230X460, 240X 480, VOLTS SECONDARY: 110, 115, 120, FREQUENCY 50/60 HZ/60 HZ
• Category: Encapsulated Industrial Control Transformers
• Full Technical Description: 3.39 Inch Width X 4.36 Inch Depth X 2.96 Inch Height Size; 50/60 Hertz Frequency Rating; UL (Canada and Us), CSA Approval; ANSI C89.1, NEMA ST-1, IEC 707/Iso 1210, E77014 Applicable Standard; 0.5 Inch Length X 0.2 Inch Width Slot Mounting; 75 Volt Amp Power Rating; Frayed Lead Wire Terminal Type; 220 X 440/230 X 460 Volt AC, 240 X 480 Volt AC Primary Voltage; 110/115 Volt AC, 120 Volt AC Secondary Voltage; 55 Deg C Temperature Rise; RoHS Compliant; SBE Model
• Manufacturer: Sola / Hevi-Duty Elec
• Manufacturer Brand: Sola/Hevi-Duty Elec
• Sub Category: Encapsulated Control Transformer
• Unspsc: 39121026
• UPC 12 Digit: 783472531226
• SKU Name: sola e075
