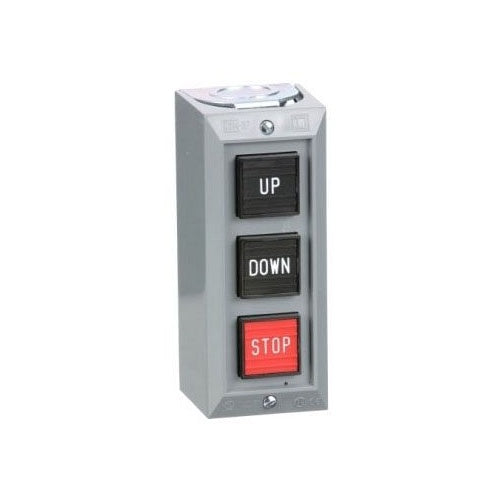

Square D 9001BG305 Control Station 600VAC 5A T-B

Overview

Square D 9001BG305 Control Station 600VAC 5A T-B

Product Specifications

• UPC: 78590139032
• Legend: Up-Down-Stop
• Enclosure: NEMA 1
• Material: Plastic Cover
• Mounting: Surface
• Cable/Conduit Entry: 1/2 to 3/4 Inch Knockout
• Approval: UL 508, CSA C22.2, CE
• Additional Information: Terminal Type Screw Clamp
• Catalog Number: 9001BG305
• Brand Name: Harmony[TM]
• Model: 9001B
• Type: Pushbutton
• Number Of Elements: 3
• Contact Configuration: 2NO-3NC
• Contact Rating: 600 VAC/VDC 5 Ampere
• Operator Type: Momentary
• Catalog Description: COMPLETE CONTROL STATION, HARMONY 9001B, 3 PUSH BUTTONS UP-DOWN-STOP, 5A, 600V AC, NEMA 1
• Category: Control Station Complete Assemblies
• Full Technical Description: Pushbutton Type; Plastic Cover Material; 2NO-3NC Contact Configuration; 600 VAC/VDC 5 Ampere Contact Rating; UL 508, CSA C22.2, CE Approval; Surface Mounting; NEMA 1 Enclosure; Up-Down-Stop Legend; Momentary Operator Type; 3 Element(S); 1/2 to 3/4 Inch Knockout Cable/Conduit Entry; HARMONY[R] Brand; Terminal Type Screw Clamp; 9001B Model
• Manufacturer: Square D Co.
• Manufacturer Brand: Square D Co.
• Prop 65 Warning: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: NICKEL COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, AND DI-ISODECYL PHTHALATE (DIDP), WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
• Proposition 65 Warning (Ca): WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Sub Category: Standard Industrial Control Station
• Unspsc: 39121565
• UPC 12 Digit: 785901390329
• SKU Name: sqd 9001bg305

Resources

• Manufacturer Spec Sheet
