Overview

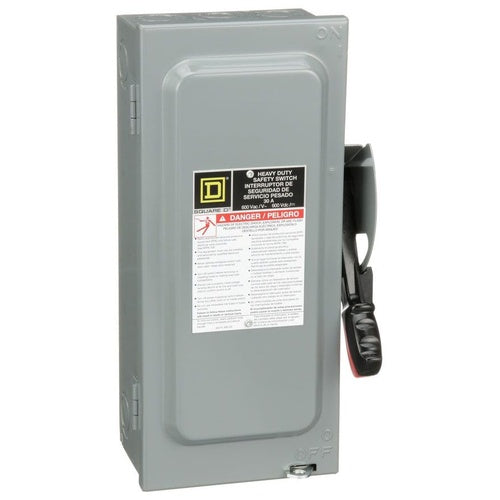

Square D H361 600 VAC 30 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Product Specifications

• Full Technical Description: The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC The enclosure is made of steel and has no neutral installed. This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted.
• Catalog Number: H361
• UPC: 78590148184
• UPC 12 Digit: 785901481843
• GTIN: 00785901481843
• Manufacturer: Schneider / Square-D
• Action: SINGLE THROW
• Amperage: 30 Amp
• Applications: HEAVY DUTY
• Conductor Size: 12-6 AWG (AL)/14-6 AWG (CU)
• Current: 30 Amp
• Disconnect Type: Fusible disconnect NULL
• Duty Rating: Heavy duty NULL
• Enclosure: 1
• Enclosure Material: Stainless Steel
• Enclosure Rating: 1
• Fuse Type: H Or K,R Or J
• Line Rated Current: 30 A
• Material: Steel
• Mounting Type: Surface
• NEMA Size: 1
• Net Weight: 4.09 kg
• Number of Phases: 3 Phase
• Number of Poles: 3 Pole
• Short Circuit Current: 10 kA
• Size: 14.6 IN,4.87 IN,7.55 IN
• Type: SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
• Voltage: 600 Volt
• Wire Size: AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
• Brand: Square D
• Sub Brand: HEAVY DUTY
• Environmental Conditions: GENERAL PURPOSE (INDOOR)
• Weight: 9.02 lb
• Depth: 4.87 Inch
• Height: 14.6 Inch
• Width: 7.55 in
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
• Certifications: UL Listed File E2875
• Country of Origin: USA
