Overview

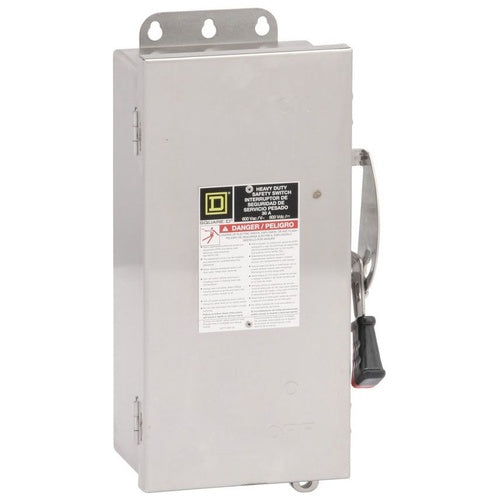

Square D HU361DS 600 VAC 30 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Product Specifications

• Catalog Number: HU361DS
• UPC: 785901023630
• Manufacturer: Schneider / Square-D
• Amperage: 30 Amp
• Applications: HEAVY DUTY
• Conductor Size: 12-6 AWG (AL)/14-6 AWG (CU)
• Current: 30 Amp
• Disconnect Type: Non-fusible disconnect
• Duty Rating: Heavy duty
• Enclosure: 4,4X,5
• Enclosure Material: Stainless Steel
• Enclosure Rating: 4, 4X, 5
• Line Rated Current: 30 A
• Material: Stainless Steel
• Mounting Type: Surface
• NEMA Size: 4,4X,5
• Net Weight: 6 kg
• Number of Phases: 3 Phase
• Number of Poles: 3 Pole
• Short Circuit Current: 200 kA
• Size: 14.93 IN,5.11 IN,8.67 IN
• Tc Connection: LUGS
• Type: SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT
• Voltage: 600 Volt
• Wire Size: AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
• Wire Type: AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER
• Brand: Square D
• Environmental Conditions: RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
• MDM Pkg GTiN: 00785901023630
• Weight: 13.23 lb
• Depth: 5.11 Inch
• Height: 14.93 Inch
• Warranty Length: 18 mth
• Width: 8.67 in
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
• Certifications: UL Listed File E2875
• Country of Origin: USA
