Overview

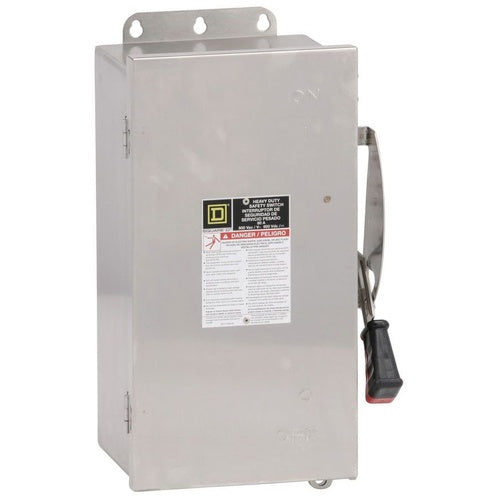

Square D HU362DS 600 VAC 60 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Product Specifications

• Catalog Number: HU362DS
• UPC: 785901023685
• Manufacturer: Schneider / Square-D
• Amperage: 60 Amp
• Applications: HEAVY DUTY
• Conductor Size: 12-3 AWG (AL)/14-3 AWG (CU)
• Current: 60 Amp
• Disconnect Type: Non-fusible disconnect
• Duty Rating: Heavy duty
• Enclosure: 4,4X,5
• Enclosure Material: Stainless Steel
• Enclosure Rating: 4, 4X, 5
• Line Rated Current: 60 A
• Material: Stainless Steel
• Mounting Type: Surface
• NEMA Size: 4,4X,5
• Net Weight: 9 kg
• Number of Phases: 3 Phase
• Number of Poles: 3 Pole
• Short Circuit Current: 200 kA
• Size: 10.81 IN,16.87 IN,6.97 IN
• Tc Connection: LUGS
• Type: SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT
• Voltage: 600 Volt
• Wire Size: AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium
• Wire Type: AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM
• Brand: Square D
• Environmental Conditions: RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
• MDM Pkg GTiN: 00785901023685
• Weight: 19.84 lb
• Depth: 6.97 Inch
• Height: 16.87 Inch
• Warranty Length: 18 mth
• Width: 10.81 in
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
• Certifications: UL Listed File E2875
• Country of Origin: USA
