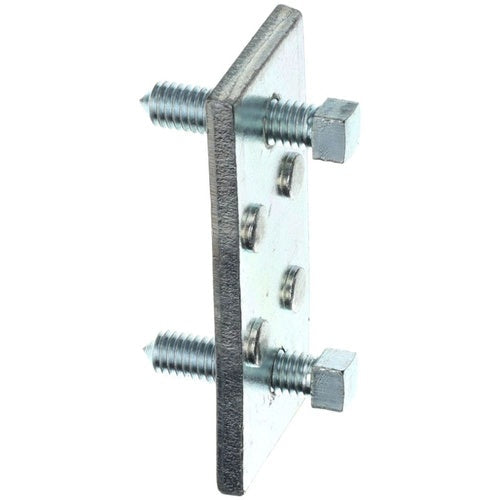

Superstrut U543 Adjusting Screw End Cap/Steel

Overview

Superstrut U543 Adjusting Screw End Cap/Steel

Product Specifications

• UPC: 61601328979
• Applicable Standard: UL, CSA, ARRA, NEC
• Used On: A1200 Series Channel
• Catalog Number: U543
• Model: U543
• Type: Adjustable Screw
• Channel Depth: 1-5/8 Inch
• Channel Width: 1-5/8 Inch
• Material: Carbon Steel
• Finish: GoldGalv
• Size: 3.5 Inch Length
• Catalog Description: END CAP, ADJUSTABLE SCREW, LENGTH 3.5 INCHES, WIDTH 1.63 INCH, STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: Adjustable Screw Type; Carbon Steel Material; 3.5 Inch Length Size; Goldgalv Finish; A1200 Series Channel Used on; 1-5/8 Inch Channel Width; UL, CSA, Arra, NEC Applicable Standard; 1-5/8 Inch Channel Depth; GOLDGALV[R] Brand; U543 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel/Strut End Cap
• Unspsc: 24122004
• UPC 12 Digit: 616013289792
• SKU Name: sstrut u543
