Overview

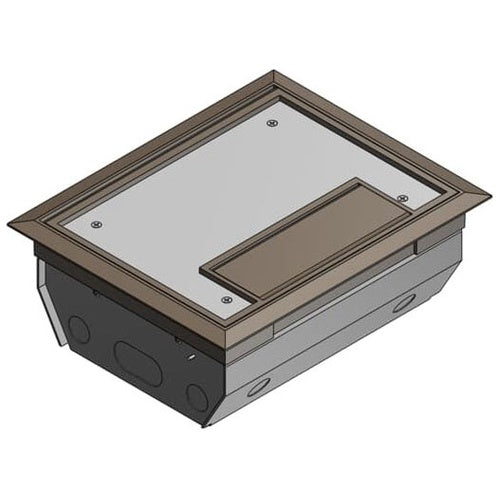

Steel City AFM6-BRN 3-Compartment Floor Insert Beige 225Cu In

Product Specifications

• UPC: 78599190041
• Cover Material: Polycarbonate Cover, Polycarbonate Flange, Steel Plate
• Shape: Rectangular
• Installation: Carpet/Tile
• Cover Mounting: Carpet Flange
• Approval: UL, CSA
• Additional Information: Cover Size 7-5/8 Inch x 9-3/4 Inch; Cover Color Brown
• Catalog Number: AFM 6 BRN
• Model: AFM-6
• Length: 10 Inch
• Width: 7-15/16 Inch
• Depth: 4 Inch
• Capacity: 225 Cu Inch
• Device Type: (3) Device Panel
• Material: 14 Gauge Galvanized Steel
• Catalog Description: THREE COMPARTMENT RAISED ACCESS FLOOR MODULE, 225 CUBIC INCHES, FLOOR CUT OUT LENGTH 7-15/16 INCHES, WIDTH 10 INCHES, COVER SIZE LENGTH 7-5/8 INCHES, WIDTH 9-3/4 INCHES, DEPTH 4 INCHES, GALVANIZED STEEL WITH BROWN COVER
• Category: Floor Boxes & Accessories
• Full Technical Description: 14 Gauge Galvanized Steel Material; 10 Inch; 7-15/16 Inch; 4 Inch; Rectangular Shape; Carpet/Tile Installation; UL, CSA Approval; 225 Cu Inch Capacity; Polycarbonate Cover, Polycarbonate Flange, Steel Plate Cover Material; (3) Device Panel Device Type; Carpet Flange Cover Mounting; Cover Size 7-5/8 Inch X 9-3/4 Inch; Cover Color Brown; AFM-6 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Raised Floor Module
• Unspsc: 39121307
• UPC 12 Digit: 785991900415
