Steel City 500-SC Beam ClAMP 1/4-20 TAppletoned

Overview

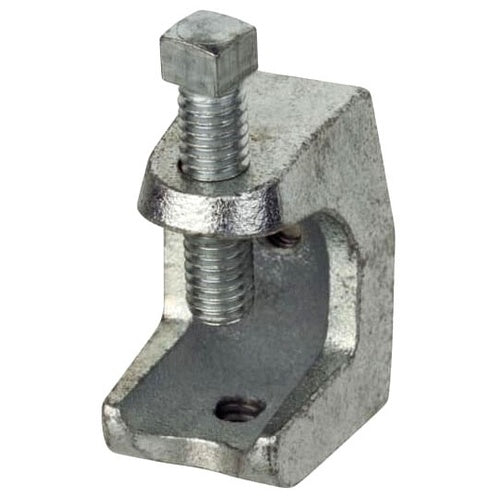

Steel City 500-SC Beam Clamp 1/4-20 Tapped

Product Specifications

• UPC: 78599150950
• Load Capacity: 450 Pound
• Material: Malleable Iron
• Finish: Bright Zinc Electroplated
• Application: Conduit, Hanging Rod
• Additional Information: Overall Dimension 1-1/4 Inch Length x 1 Inch Width; Approval CSA
• Catalog Number: 500-SC
• Brand Name: Steel City
• Type: Wide Throat
• Minimum Jaw Capacity: 1-5/16 Inch
• Maximum Jaw Capacity: 29/32 Inch
• Supplied With Screw: Yes
• Screw Type: Hex Head, Cup Point, Cap Screw
• Screw Size: 1/4 Inch-20 TPI
• Catalog Description: CLAMP, BEAM, LENGTH 1-1/4 INCH, WIDTH 1 INCH, JAW OPENING 15/16 INCH, 1/4 INCH - 20 THREADED OPENING, MALLEABLE IRON
• Category: Anchors & Fasteners
• Full Technical Description: Malleable Iron Material; Electroplated Silver Finish; 1-5/16 Inch Max. Jaw Capacity; Welding Application; 250 Pound Load Capacity; 1/4 Inch-20 TPI Screw Size; Overall Dimension 1-1/4 Inch Length X 1 Inch Width; Torque Rating 60 Inch-Pound
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 785991509502
• SKU Name: stlcity 500sc
