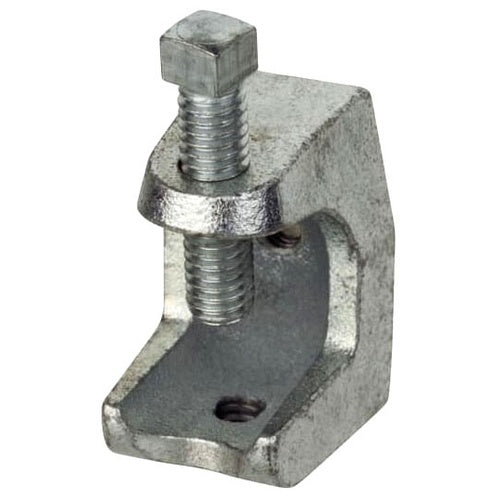

Steel City 501 Beam ClAMP Len1-5/8 W1-1/2 Malleable Iron

Overview

Steel City 501 Beam Clamp Len1-5/8 W1-1/2 Malleable Iron

Product Specifications

• UPC: 78599150954
• Load Capacity: 800 Pound
• Material: Malleable Iron
• Finish: Bright Zinc Electroplated
• Application: Conduit, Hanging Rod
• Additional Information: Overall Dimension 1-5/8 Inch Length x 1-1/2 Inch Width; Approval CSA
• Catalog Number: 501
• Brand Name: Steel City
• Type: Wide Throat
• Minimum Jaw Capacity: 7/8 Inch
• Maximum Jaw Capacity: 29/32 Inch
• Supplied With Screw: Yes
• Screw Type: Hex Head, Cup Point, Cap Screw
• Screw Size: 5/16 Inch-18 TPI
• Catalog Description: CLAMP, BEAM, LENGTH 1-5/8 INCH, WIDTH 1-1/2 INCH, JAW OPENING 7/8 INCH, 5/16 INCH, 18 THREADED OPENING, MALLEABLE IRON
• Category: Anchors & Fasteners
• Full Technical Description: Wide Throat Type; Malleable Iron Material; Bright Zinc Electroplated Finish; 7/8 Inch min. Jaw Capacity; 29/32 Inch Max. Jaw Capacity; Conduit, Hanging Rod Application; 800 Pound Load Capacity; 5/16 Inch-18 TPI Screw Size; Hex Head, Cup Point, Cap Screw Screw Type; Yes Supplied With Screw; Overall Dimension 1-5/8 Inch Length X 1-1/2 Inch Width; Approval CSA
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 785991509540
• SKU Name: stlcity 501
