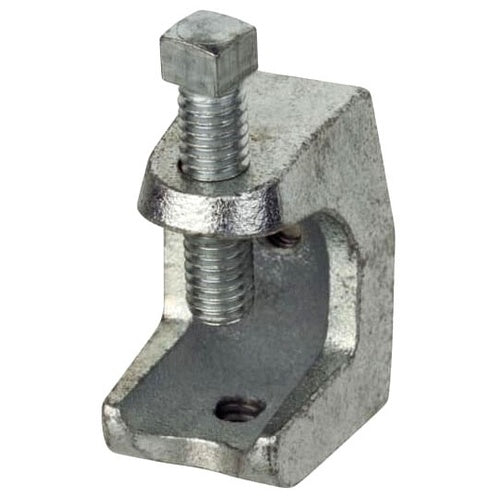

Steel City 502 Beam ClAMP Len2 W2 Opening 1"/3/8"

Overview

Steel City 502 Beam Clamp Len2 W2 Opening 1"/3/8"

Product Specifications

• UPC: 78599150958
• Catalog Number: 502
• Maximum Jaw Capacity: 1 Inch
• Supplied With Screw: Yes
• Screw Size: 3/8 Inch to 16 TPI
• Load Capacity: 750 Pound
• Material: Malleable Iron
• Application: Hanging Rod
• Additional Information: Size 2 Inch Length x 2 Inch Width
• Catalog Description: CLAMP, BEAM, LENGTH 2 INCHES, WIDTH 2 INCHES, JAW OPENING 1 INCH, 3/8 INCH, 16 THREADED OPENING, MALLEABLE IRON
• Category: Channel & Strut Fittings
• Full Technical Description: Malleable Iron Material; 1 Inch Max. Jaw Capacity; Hanging Rod Application; 750 Pound Load Capacity; 3/8 Inch to 16 TPI Screw Size; Yes Supplied With Screw; Size 2 Inch Length X 2 Inch Width
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 785991509588
• SKU Name: stlcity 502

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
