Steel City 503SC Beam ClAMP 1/2-13 TAppletoned

Overview

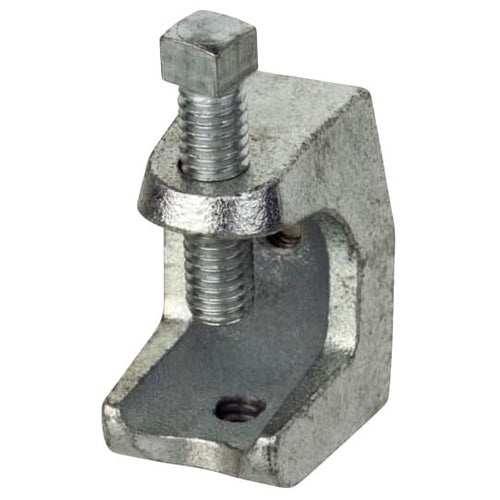

Steel City 503SC Beam Clamp 1/2-13 Tapped

Product Specifications

• UPC: 78599150962
• Material: Malleable Iron
• Finish: Silver Electroplated
• Application: Hanging Rod
• Additional Information: Overall Dimension 2-1/2 Inch Length x 2-5/8 Inch Width; Approval CSA
• Catalog Number: 503 SC
• Brand Name: Steel City/Kindorf
• Type: I
• Maximum Jaw Capacity: 1 Inch
• Supplied With Screw: Yes
• Screw Type: Square Head
• Screw Size: 1/2 Inch-13 TPI
• Load Capacity: 1300 Pound
• Catalog Description: CLAMP, BEAM, LENGTH 2-1/2 INCHES, WIDTH 2-5/8 INCHES, JAW OPENING 1 INCH, TAPPED HOLE 1/2-13 INCH, MALLEABLE IRON
• Category: Anchors & Fasteners
• Full Technical Description: Malleable Iron Material; Silver Electroplated Finish; 1 Inch Max. Jaw Capacity; Hanging Rod Application; 1250 Pound (Set Screw) Load Capacity; 1/2 Inch-13 TPI Screw Size; Yes Supplied With Screw; Approval CSA; Base Size 2-1/2 Inch Length X 2-5/8 Inch Width
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 785991509625
• SKU Name: stlcity 503sc

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
