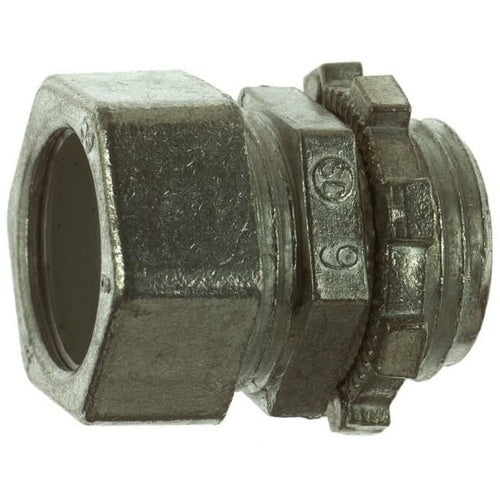

Steel City TC213SC 1" Connector, Compression, Emt, Die-Cast

Overview

Steel City TC213SC 1" Connector, Compression, Emt, Die-Cast

Product Specifications

• UPC: 78599143734
• Material: Die-Cast Zinc
• Constructional Feature: Concrete Tight
• Standard Package: 200 per Outer Pack
• Approval: UL, CSA
• Used On: EMT Conduit
• Additional Information: Application Commercial
• Catalog Number: TC 213 SC
• Brand Name: Steel City
• Model: TC
• Type: Compression
• Throat Type: Non-Insulated
• Trade Size: 1 Inch
• Diameter: 1-15/32 Inch
• Length: 1-29/64 Inch
• Catalog Description: CONNECTOR, NON-INSULATED COMPRESSION, CONDUIT SIZE 1 INCH, LENGTH 1-29/64 INCH, WIDTH 1-15/32 INCH, DIE CAST ZINC, FOR USE WITH EMT CONDUIT
• Category: Die Cast Uninsulated Straight Compression Emt Connectors
• Full Technical Description: Compression Type; Die-Cast Zinc Material; 1-29/64 Inch; EMT Conduit Used on; UL, CSA Approval; 1-15/32 Inch Diameter; 200 Per Outer Pack Standard Package; 1 Inch Trade Size; Concrete Tight; Non-Insulated Throat Type; Application Commercial; TC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 785991437348
• SKU Name: stlcity tc213sc

Resources

• Manufacturer Spec Sheet
