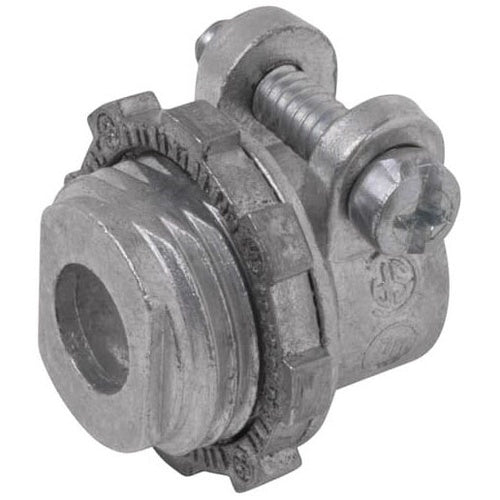

Steel City XC272 3/4" Connector, Squeeze, Ac/Flex, Die-Cast

Overview

Steel City XC272 3/4" Connector, Squeeze, Ac/Flex, Die-Cast

Product Specifications

• UPC: 78599144706
• Length: 1.59 Inch
• Installation: Squeeze
• Material: Die-Cast Zinc
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Catalog Number: XC 272
• Brand Name: Steel City
• Model: XC
• Type: Straight
• Trade Size: 3/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 0.88 to 1.1 Inch
• Catalog Description: CONNECTOR, STRAIGHT SQUEEZE-TYPE, SIZE 3/4 INCH, CLAMPING RANGE 0.88 INCH - 1.10 INCH, LENGTH 1.59 INCH, DIE CAST ZINC
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Die-Cast Zinc Material; 1.59 Inch; Squeeze Installation; UL, CSA Approval; 250 Per Outer Pack Standard Package; 3/4 Inch Trade Size; 0.88 to 1.1 Inch Cord Size; Armored Cable/Flexible Conduit; Single Cable Opening; XC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 785991447064
• SKU Name: stlcity xc272

Resources

• Manufacturer Spec Sheet
