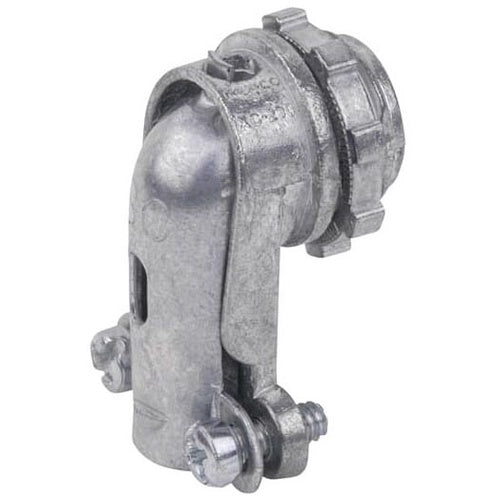

Steel City XC491 1/2" Connector, 90 Deg. Ac/Flex, Squeeze

Overview

Steel City XC491 1/2" Connector, 90 Deg. Ac/Flex, Squeeze

Product Specifications

• UPC: 78599144832
• Installation: Squeeze
• Throat Type: Non-Insulated
• Material: Zinc Plated Malleable Iron
• Standard Package: 100 per Outer Pack
• Approval: UL
• Additional Information: Width 1-13/16 Inch
• Catalog Number: XC 491
• Brand Name: Steel City
• Model: XC
• Type: 90 Degree
• Trade Size: 1/2 Inch
• Cable Opening: Duplex
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 0.75 to 0.937 Inch
• Catalog Description: 90 DEGREE SQUEEZE TYPE CONNECTOR, CONDUIT SIZE 1/2 INCH, CABLE OPENING 0.750 INCHES - 0.937 INCHES, HEIGHT 1-11/16 INCH, WIDTH 1-13/16 INCH, MATERIAL ZINC PLATED MALLEABLE IRON, FOR USE WITH ARMORED CABLE/FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Zinc Plated Malleable Iron Material; Squeeze Installation; UL Approval; 100 Per Outer Pack Standard Package; 1/2 Inch Trade Size; 0.75 to 0.937 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Duplex Cable Opening; Width 1-13/16 Inch; XC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 785991448320
• SKU Name: stlcity xc491

Resources

• Manufacturer Spec Sheet
