T&B 10102-TB 1-1/2" Bx Ground ClAMP

Overview

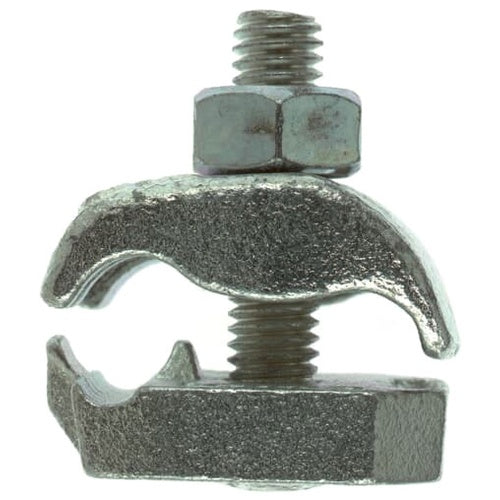

T&B 10102-TB 1-1/2" Bx Ground Clamp

Product Specifications

• UPC: 78621010102
• Used On: Cable Tray
• Catalog Number: 10102-TB
• Conductor Size: 8 AWG Solid to 2 AWG Stranded
• Bolt Size: 5/16 Inch-18 TPI
• Bar Thickness: 5/32 Inch
• Height: 1-1/4 Inch
• Material: Malleable Iron
• Standard Package: 25
• Approval: UL
• Catalog Description: CABLE TRAY CONNECTOR FOR WIRE RANGE #8 SOL. - 2 STR., CARRIAGE BOLT SIZE 5/16 - 18
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Malleable Iron Material; 1-1/4 Inch; Cable Tray Used on; UL Approval; 25 Standard Package; 8 AWG Solid to 2 AWG Stranded Conductor Size; 5/16 Inch-18 TPI Bolt Size; 5/32 Inch Bar Thickness; EZGROUND[TM] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121613
• UPC 12 Digit: 786210101026
• SKU Name: t&b 10102tb

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
