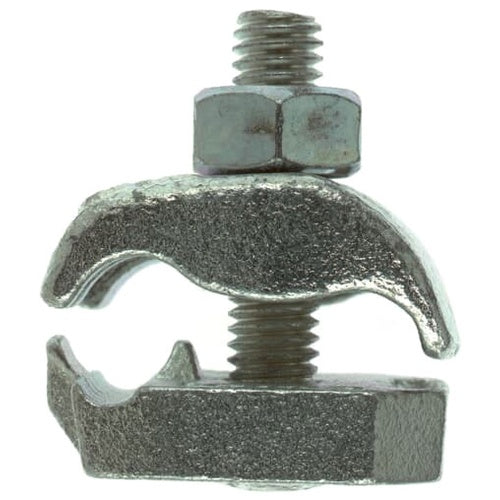

T&B 10103-TB Ground ClAMP Single Conduit No4 To 4/0

Overview

T&B 10103-TB Ground Clamp Single Conduit No4 To 4/0

Product Specifications

• UPC: 78621010103
• Used On: CABLE TRAY
• Catalog Number: 10103-TB
• Conductor Size: 4 TO 4/0 AWG STRANDED
• Bolt Size: 3/8 INCH-16 TPI
• Bar Thickness: 5/32 INCH
• Height: 1-3/4 INCH
• Material: MALLEABLE IRON
• Standard Package: 25
• Approval: UL
• Catalog Description: GROUND CLAMP CONNECTOR FOR WIRE RANGE #4 STR. - 4/0 STR. CARRIAGE BOLT SIZE 3/8 - 16
• Category: Large Terminals & Connectors
• Full Technical Description: Malleable Iron Material; 1-3/4 Inch; Cable Tray Used on; UL Approval; 25 Standard Package; 4 to 4/0 AWG Stranded Conductor Size; 3/8 Inch-16 TPI Bolt Size; 5/32 Inch Bar Thickness
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121613
• UPC 12 Digit: 786210101033
• SKU Name: t&b 10103tb
