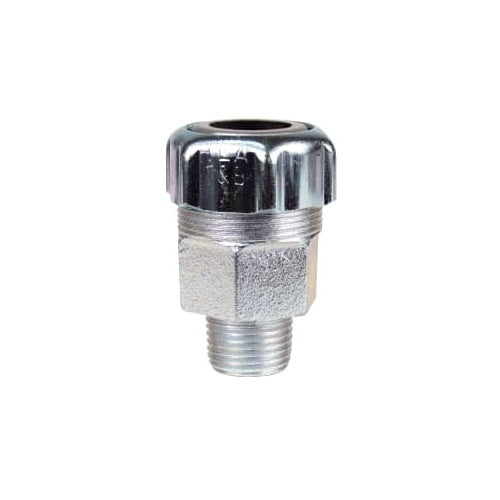

T&B 10465-TB Malleable Watertight Fitting Hub 1/2" .750-.885

Overview

T&B 10465-TB Malleable Watertight Fitting Hub 1/2" .750-.885

Product Specifications

• UPC: 78621030746
• Application: Hazardous Location
• Approval: UL, CSA
• Additional Information: Throat Diameter 0.615 Inch
• Catalog Number: 10465-TB
• Brand Name: Star Teck[R]
• Type: Straight
• Hub Size: 1/2 Inch
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 0.75 to 0.885 Inch
• Constructional Feature: Water Tight
• Material: Malleable Iron
• Catalog Description: WATERTIGHT FITTING MADE OF MALLEABLE IRON WITH A HUB THREAD SIZE OF 1/2 INCH CABLE JACKET OUTSIDE DIAMETER IS 0.75 TO 0.885 INCH.
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight Type; Malleable Iron Material; 1/2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; 0.75 to 0.885 Inch Cable Size; UL, CSA Approval; Hazardous Location Application; Water Tight; Throat Diameter 0.615 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210307466
• SKU Name: t&b 10465tb

Resources

• Manufacturer Spec Sheet
