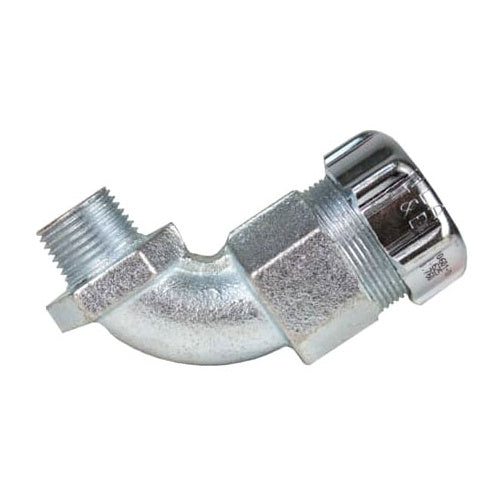

T&B 10602-TB Malleable 90Deg Watertight Fitting 1/2" .750-.885

Overview

T&B 10602-TB Malleable 90Deg Watertight Fitting 1/2" .750-.885

Product Specifications

• UPC: 78621010602
• Application: Hazardous Location
• Approval: UL, CSA
• Additional Information: Throat Diameter 0.615 Inch; Bushing Size 0.75 to 0.885 Inch
• Catalog Number: 10602-TB
• Brand Name: Star Teck[R]
• Type: 90 Degree
• Hub Size: 1/2 Inch
• Throat Type: Bushing
• Cable Type: Jacketed Metal Clad Cable
• Constructional Feature: Water Tight
• Material: Malleable Iron (Body), Neoprene (Bushing)
• Catalog Description: 90 DEGRES WATERTIGHT FITTING MADE OF MALLEABLE IRON WITH A PROTECTIVE GROUNDING SLEEVE FOR JACKETED METAL-CLAD CABLE. 1/2 INCH HUB THREAD SIZE. NEOPRENE BUSHING 0.750-0.885 INCH.
• Category: Large Terminals & Connectors
• Full Technical Description: 90 Degree Type; Malleable Iron (Body), Neoprene (Bushing) Material; 1/2 Inch Hub Size; Jacketed Metal Clad Cable Cable Type; UL, CSA Approval; Hazardous Location Application; Water Tight; Bushing Throat Type; Throat Diameter 0.615 Inch; Bushing Size 0.75 to 0.885 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Metal Clad Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210106021
• SKU Name: t&b 10602tb

Resources

• Manufacturer Spec Sheet
