Product information
Overview

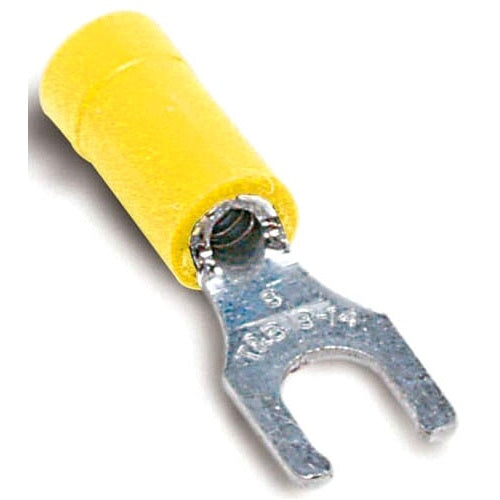

T&B 10RC-10FL 12-10 Insulated Spade Terminal
Product Specifications
- UPC: 78621080726
- Standard Package: 250 per Outer Pack
- Approval: UL, CSA
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.09 Inch Length x 0.37 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Tin Plated
- Catalog Number: 10RC-10FL
- Brand Name: Sta-Kon
- Type: Locking
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Vinyl Insulated
- Stud Size: #10
- Catalog Description: VINYL-INSULATED LOCKING FORK TERMINAL, LENGTH 1.09 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .220, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 250 Per Outer Pack Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.09 Inch Length X 0.37 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210807263
- SKU Name: t&b 10rc10fl
