Product information
Overview

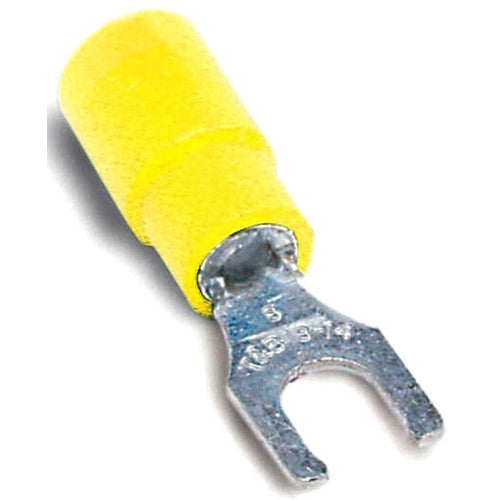

T&B 10RC-10FLX 12-10 Insulated Spade Terminal
Product Specifications
- UPC: 78621080727
- Temperature Rating: 105 Deg C
- Approval: UL, CSA
- Additional Information: Size 1.1 Inch L x 0.37 Inch W; Finish Electroplated Tin
- Catalog Number: 10RC-10FLX
- Model: RC
- Type: Locking
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Vinyl Insulated, Expanded Entry
- Stud Size: #10
- Catalog Description: EXPANDED VINYL-INSULATED LOCKING FORK TERMINAL, LENGTH 1.10 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .250, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #10 Stud Size; Vinyl Insulated, Expanded Entry Insulation Type; Size 1.1 Inch L X 0.37 Inch W; Finish Electroplated Tin; RC Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210807270
- SKU Name: t&b 10rc10flx
