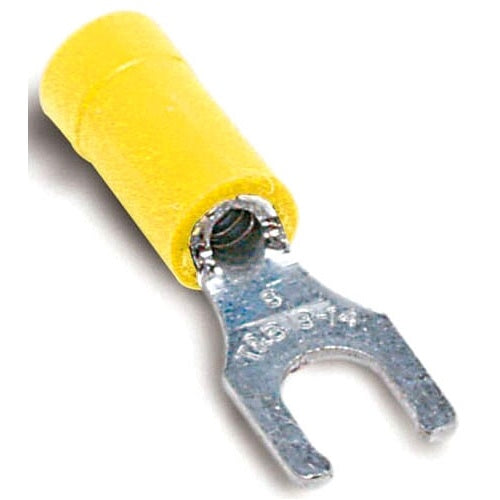

T&B 10RC-14FL 12-10 Insulated Spade Terminal

Overview

T&B 10RC-14FL 12-10 Insulated Spade Terminal

Product Specifications

• UPC: 78621080728
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.09 Inch Length x 0.49 Inch Width; Material Copper; Finish Electro Tin Plated
• Catalog Number: 10RC-14FL
• Brand Name: Sta-Kon
• Type: Locking
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Vinyl Insulated
• Stud Size: 1/4 Inch
• Catalog Description: VINYL-INSULATED LOCKING FORK TERMINAL, LENGTH 1.09 INCHES, WIDTH .49 INCHES, MAXIMUM INSULATION .220, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 250 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.09 Inch Length X 0.49 Inch Width; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210807287
• SKU Name: t&b 10rc14fl
