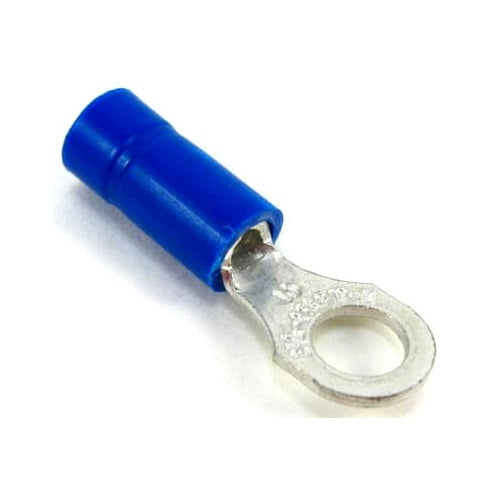

T&B 14RB-10 18-14 Insulated Ring Terminal

Overview

T&B 14RB-10 18-14 Insulated Ring Terminal

Product Specifications

• UPC: 78621080069
• Standard Package: 500 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.97 Inch Length x 0.31 Inch Width; Stock Thickness 0.03 Inch; Material Copper; Finish Tin Plated
• Catalog Number: 14RB-10
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Vinyl Insulated
• Stud Size: #10
• Catalog Description: VINYL-INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #10, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 500 Per Outer Pack Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.97 Inch Length X 0.31 Inch Width; Stock Thickness 0.03 Inch; Material Copper; Finish Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210800691
• SKU Name: t&b 14rb10
