Product information
Overview

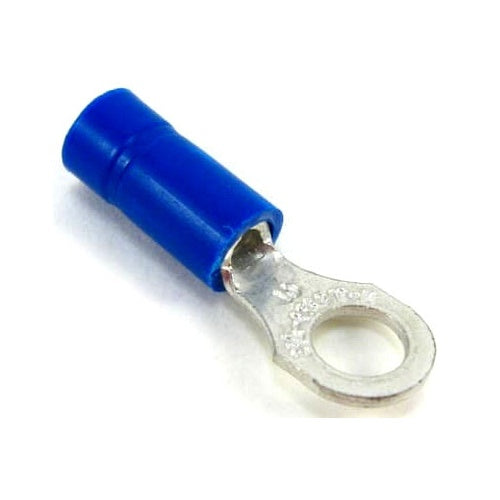

T&B 14RB-6 18-14 Insulated Ring Terminal
Product Specifications
- UPC: 78621080061
- Approval: UL E9809, UL 486A/B, CSA 22.2
- Additional Information: Barrel Type Brazed Seam; Voltage Rating 600 Volt; Maximum Wire Insulation Diameter 0.17 Inch; Overall Dimension 0.97 Inch Length x 0.31 Inch Width; Stock Thickness 0.03 Inch; Material Copper; Finish Tin Plated
- Catalog Number: 14RB-6
- Type: Standard
- Minimum Conductor Size: 18 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Vinyl Insulated
- Stud Size: #6
- Standard Package: 100 per Inner Pack, 500 per Outer Pack
- Catalog Description: VINYL-INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #6, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; #6 Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.97 Inch Length X 0.31 Inch Width X 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210800615
- SKU Name: t&b 14rb6
