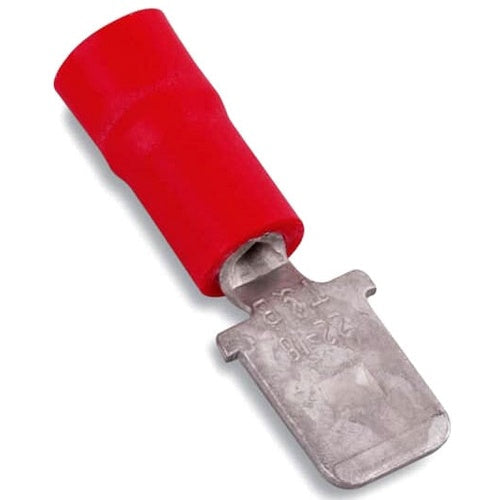

T&B 18RA-250T 22-18 Insulated Male Disconnect

Overview

T&B 18RA-250T 22-18 Insulated Male Disconnect

Product Specifications

• UPC: 78621087417
• Insulation Type: Vinyl Insulated
• Temperature Rating: 105 Deg C
• Standard Package: 500 per Outer Pack
• Approval: UL, CSA
• Additional Information: Length 0.95 Inch; Material Electro Tin Plated Brass
• Catalog Number: 18RA-250T
• Brand Name: Sta-Kon
• Model: 18RA
• Type: Tab Style, Barrel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Red
• Catalog Description: VINYL-INSULATED MALE TAB, LENGTH .95 INCHES, MAXIMUM INSULATED .150, TAB SIZE .250X.032, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Tab Style, Barrel Entry Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; Vinyl Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Length 0.95 Inch; Material Electro Tin Plated Brass; 18RA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Male Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210874173
• SKU Name: t&b 18ra250t
