Overview

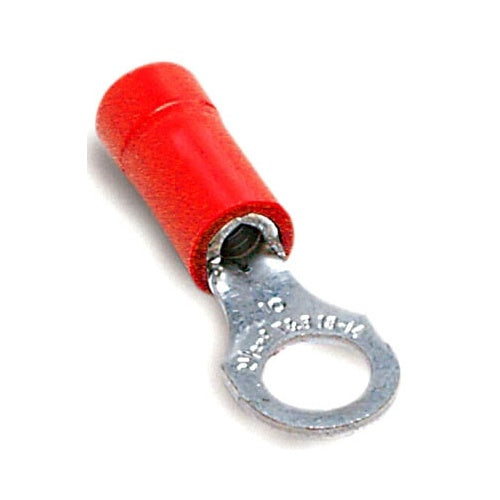

18RA6 - 22-16 Ins Ring Terminal

Product Specifications

• Full Technical Description: ABB 18RA-6 INS VINYL RING TERM 22-1
• Catalog Number: 18RA6
• Manufacturer: Sta-Kon
• UNSPSC: 39121432 - Electrical terminals
• Material: Copper
• Voltage Rating: 600 V
• Wire Size: 22-16 AWG
• Color: Red
• Product Type: Ins Vinyl Ring Term 22-16 NO6 Red
• Special Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out value
• Brand: Thomas&Betts-Abb Ins Prod
• Manufacturers Part Number: 18RA-6
• UPC: 786210800844
• GTIN: 00786210800844
• Type: Vinyl Insulated Ring Terminal
• Carton: 100
• Package: 500
• Standard: UL E9809 / UL E9809
