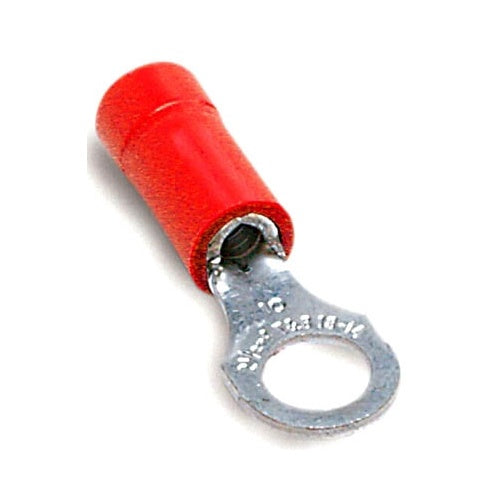

T&B 18RA-8 22-16 Insulated Ring Terminal

Overview

T&B 18RA-8 22-16 Insulated Ring Terminal

Product Specifications

• UPC: 78621080088
• Temperature Rating: 105 Deg C
• Standard Package: 500 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.97 Inch Length x 0.31 Inch Width; Material Copper; Finish Tin Plated
• Catalog Number: 18RA-8
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Red
• Insulation Type: Vinyl Insulated
• Stud Size: #8
• Catalog Description: VINYL-INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .150, BOLT HOLE #8, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; #8 Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.97 Inch Length X 0.31 Inch Width; Material Copper; Finish Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210800882
• SKU Name: t&b 18ra8
