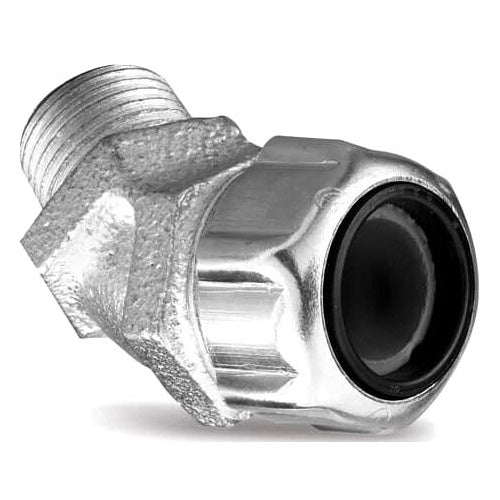

T&B 2201 1/2" 45D Liquidtight Cord Connector .250-.375

Overview

T&B 2201 1/2" 45D Liquidtight Cord Connector .250-.375

Product Specifications

• UPC: 78621002201
• Additional Information: RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
• Catalog Number: 2201
• Type: 45 Degree, Strain Relief
• Thread Size: 1/2 Inch
• Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing)
• Cord Size: 0.25 to 0.375 Inch
• Size: 1-1/8 Inch Diameter x 1-9/32 Inch Length
• Approval: UL 514B, CSA C22.2-18.3
• Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1/2 INCH, 45 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.250 TO 0.375 INCH, MALLEABLE IRON
• Category: Cable & Cord Grips
• Full Technical Description: 45 Degree, Strain Relief Type; Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 1-1/8 Inch Diameter X 1-9/32 Inch Length Size; UL 514B, CSA C22.2-18.3 Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1/2 Inch Thread Size; 0.25 to 0.375 Inch Cord Size; RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022017
• SKU Name: t&b 2201

Resources

• Manufacturer Spec Sheet
