Overview

High durability for long-lasting performance, Designed for easy installation and integration, Corrosion-resistant finish for enhanced longevity

Product Specifications

• UPC: 78621002269
• Approval: UL, CSA
• Application: Dry/Wet Hazardous Location
• Additional Information: Constructional Feature Liquidtight, Strain Relief; Temperature Rating 105 Deg C
• Catalog Number: 2269
• Brand Name: T&B
• Model: 2200
• Type: 90 Degree
• Thread Size: 1/2 Inch
• Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene Bushing
• Cord Size: 0.375 to 0.5 Inch
• Size: 1-1/8 Inch Diameter

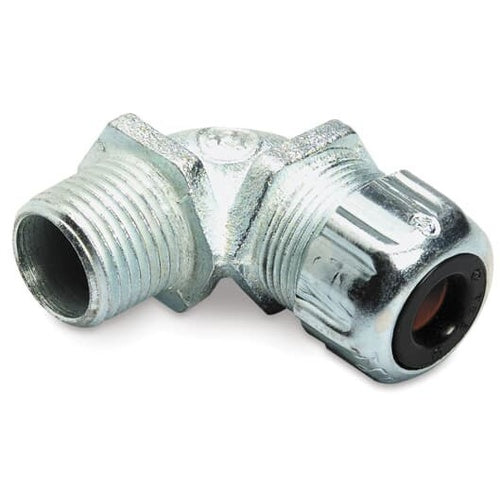

• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1/2 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.375 TO 0.500 INCH, MALLEABLE IRON
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Type; Malleable Iron (Body), Steel (Gland Nut), Neoprene Bushing Material; 1-1/8 Inch Diameter Size; UL, CSA Approval; Dry/Wet Hazardous Location Application; 1/2 Inch Thread Size; 0.375 to 0.5 Inch Cord Size; Constructional Feature Liquidtight, Strain Relief; Temperature Rating 105 Deg C; 2200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022697
• SKU Name: T&B 2269
