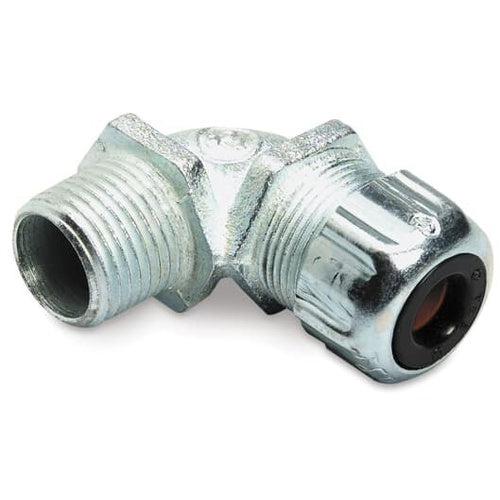

T&B 2277 1-1/4" 90D Liquidtight Cord Connector .880-1.065

Overview

High resistance to corrosion and wear, Exceptional load-bearing capacity, Easy installation and maintenance

Product Specifications

• UPC: 78621002277
• Additional Information: RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
• Catalog Number: 2277
• Type: 90 Degree, Strain Relief
• Thread Size: 1-1/4 Inch
• Material: Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing)
• Cord Size: 0.88 to 1.065 Inch
• Size: 2-1/16 Inch Diameter
• Approval: UL 514B, CSA C22.2-18.3
• Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1-1/4 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.880 TO 1.065 INCH, MALLEABLE IRON
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree, Strain Relief Type; Malleable Iron (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 2-1/16 Inch Diameter Size; UL 514B, CSA C22.2-18.3 Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1-1/4 Inch Thread Size; 0.88 to 1.065 Inch Cord Size; RoHS Compliant; Operating Temperature -20 to 105 Deg C; Applicable Standard ANSI C33.84, NFPA 70
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022772
• SKU Name: T&B 2277
