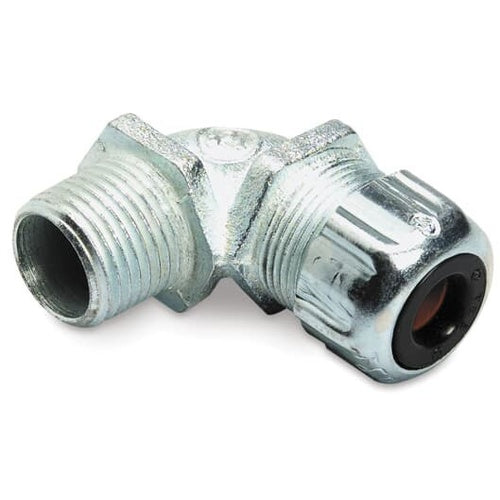

T&B 2281 1-1/2" 90D Liquidtight Cord Connector .812-1.000

Overview

High resistance to corrosion and environmental factors, Easy installation with user-friendly design, Compatible with various cable sizes and types

Product Specifications

• UPC: 78621002281
• Application: Dry/Hazardous/Wet Location
• Additional Information: Construction Feature Watertight; Operating Temperature 105 Deg C
• Catalog Number: 2281
• Model: 2200
• Type: 90 Deg
• Thread Size: 1-1/2 Inch
• Material: Malleable Iron Body, Steel Gland Nut, Neoprene Bushing
• Cord Size: 0.812 to 1 Inch
• Size: 2-5/16 Inch Dia
• Approval: UL, CSA
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1-1/2 INCH, 90 DEGREE BEND, MEETS COAST GUARD CG293, CORD RANGE 0.812 TO 1.000 INCH, MALLEABLE IRON.
• Category: Cable & Cord Grips
• Full Technical Description: 90 Deg Type; Malleable Iron Body, Steel Gland Nut, Neoprene Bushing Material; 2-5/16 Inch Dia Size; UL, CSA Approval; Dry/Hazardous/Wet Location Application; 1-1/2 Inch Thread Size; 0.812 to 1 Inch Cord Size; Construction Feature Watertight; Operating Temperature 105 Deg C; 2200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210022819
• SKU Name: T&B 2281
