Product information
Overview

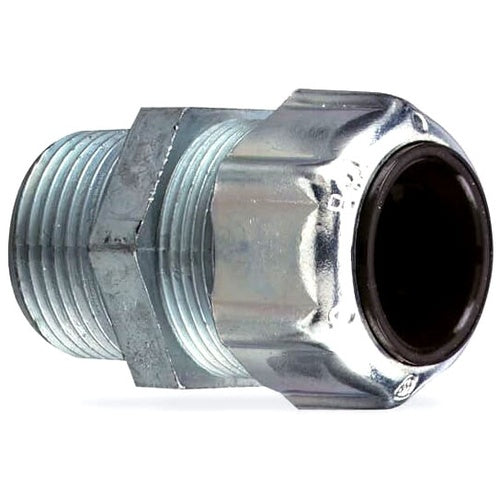

T&B 2544 1" Cord Connector .500-.625 Range
Product Specifications
- UPC: 78621002544
- Application: Dry/Wet/Hazardous Location
- Additional Information: Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 49/64 Inch; Temperature Rating 105 Deg C
- Catalog Number: 2544
- Brand Name: T&B
- Type: Straight Male
- Thread Size: 1 Inch
- Material: Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing)
- Cord Size: 0.5 to 0.625 Inch
- Size: 1-11/16 Inch Diameter x 1-23/32 Inch Length
- Approval: UL, CSA
- Catalog Description: LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, 1 INCH, STRAIGHT, CORD RANGE 0.500 TO 0.625 INCH, DIE CAST ZINC
- Category: Cable & Cord Grips
- Full Technical Description: Straight Male Type; Die-Cast Zinc (Body), Steel (Gland Nut), Neoprene (Bushing) Material; 1-11/16 Inch Diameter X 1-23/32 Inch Length Size; UL, CSA Approval; Dry/Wet/Hazardous Location Application; 1 Inch Thread Size; 0.5 to 0.625 Inch Cord Size; Constructional Feature Liquidtight, Strain Relief; Minimum Throat Diameter 49/64 Inch; Temperature Rating 105 Deg C
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Flexible Cord/Cable Connector
- Unspsc: 39121431
- UPC 12 Digit: 786210025445
- SKU Name: t&b 2544
