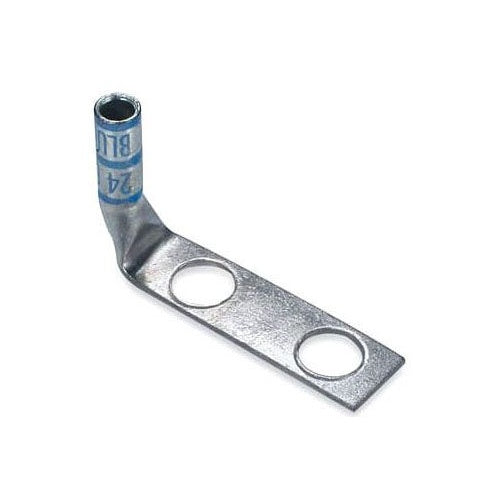

T&B 256-30695-1356 Copper Tin-Plated 2-Hole Lug90D Stnd No6 No10B Blue

Overview

T&B 256-30695-1356 Copper Tin-Plated 2-Hole Lug90D Stnd No6 No10B Blue

Product Specifications

• Catalog Description: COPPER TWO-HOLE LUG, 90 DEGREE STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #6 AWG, #10 BOLE SIZE, 5/8 INCH HOLE SPACING, DIE COLOR CODE BLUE, DIE CODE 24
• Full Technical Description: Electrolytic Tin Plated Wrought Copper Material; Blue Color; 1-5/8 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG (Code), 6 AWG (Flex), 61/24 (Flex) Conductor Size; #10 Stud Size; 24 Die Index; 1-3/16 Inch L X 7/16 Inch W X 5/64 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; 90 Deg Short Barrel Type; COLOR-KEYED[R] Brand; 256-30695 Model
• Manufacturer: THOMAS & BETTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210886749
• SKU Name: t&b 256306951356

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
